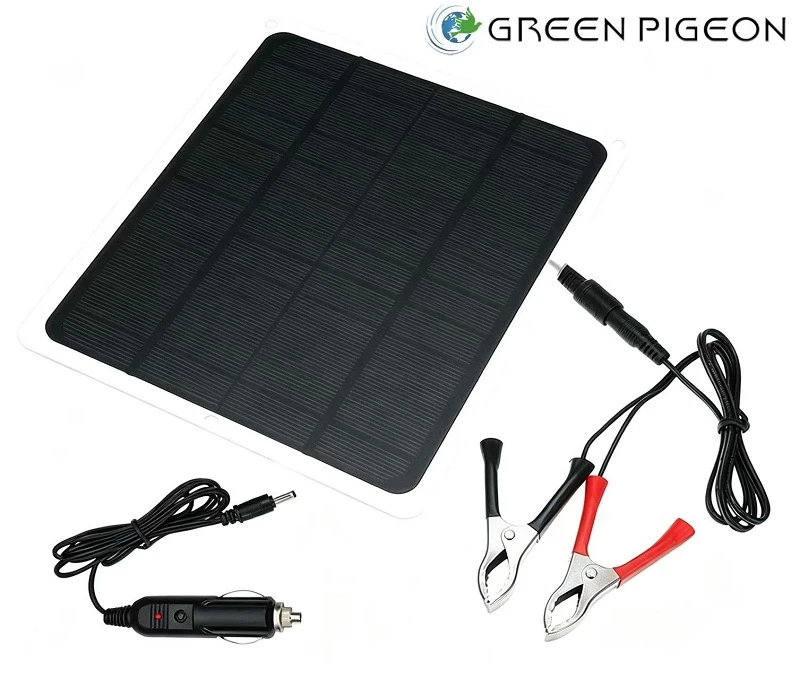

Our 20W lightweight monocrystalline solar panel kit is a multi-scene portable solar power solution for outdoor camping, RV travel, car battery maintenance, hiking and off-grid small device charging, equipped with complete matching accessories for instant use out of the box. Adopted high-efficiency monocrystalline silicon cells with up to 20.15% module conversion efficiency, this panel efficiently converts sunlight into stable electric energy even under weak cloudy light, realizing zero-cost outdoor power supply without grid connection. It features dual independent output ports: 5V USB port for fast charging mobile phones, power banks and small digital gadgets, plus 12V DC port for trickle charging 12V lead-acid car, motorcycle and RV batteries, with built-in voltage regulator to stabilize output current and avoid device damage. The whole panel adopts flexible epoxy laminated waterproof structure, ultra-thin slim body sized 2151853mm with only 170g single panel weight, ultra-light and easy to carry, fix or hang. The full set weighs 500g including all supporting accessories: battery alligator clip cables, 4 transparent suction cups and 2 metal carabiners, supporting multiple installation methods such as window adsorption, backpack hanging and flat ground placement. Under standard test conditions, it reaches 20W rated power, with maximum power working voltage 12V and maximum power current 1.66A, matching most 12V small storage batteries and 5V portable electronics. No built-in energy storage battery inside the panel, can be shipped as ordinary goods without dangerous battery logistics restrictions. Perfect for daily vehicle battery maintenance, outdoor hiking emergency charging, camping tent auxiliary power supply and field monitoring equipment power supplement.

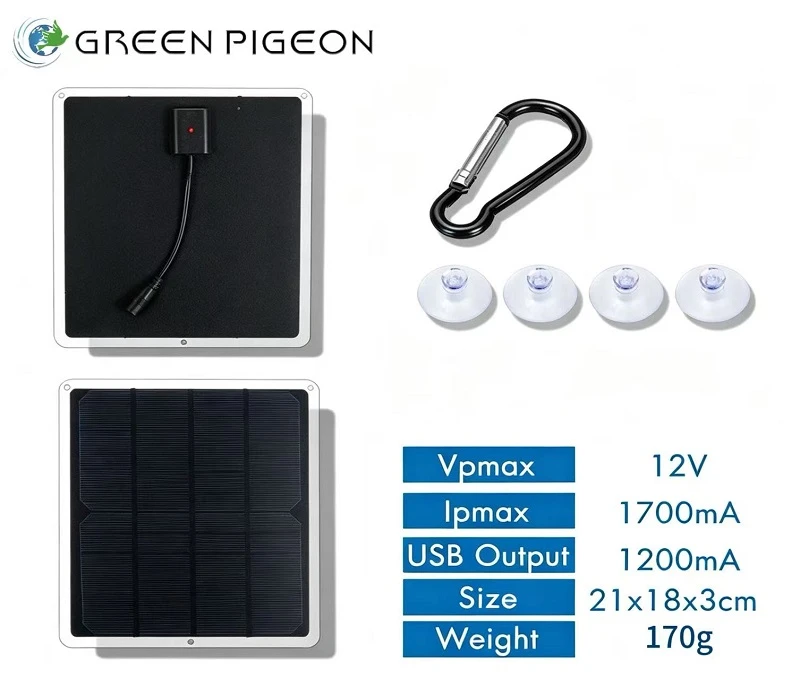

Product Parameter Specification of 20W Portable Monocrystalline Solar Panel Kit
|
Item Specification |
Details |
|
Product Name |
20W Portable Monocrystalline Solar Panel Charger Kit |
|
Cell Type |
High Efficiency Monocrystalline Silicon Solar Cell |
|
Rated Max Power |
20W |
|
Module Conversion Efficiency |
20.15% |
|
Max Power Voltage (Vmp) |
12V |
|
Max Power Current (Imp) |
1.66A |
|
Dual Output Ports |
5V USB (1200mA) + 12V DC (1700mA) |
|
Built-in Accessory |
5V USB Voltage Regulator Module |
|
Overall Panel Dimension |
2151853mm |
|
Single Solar Panel Weight |
170g |
|
Full Set Total Weight |
500g |
|
Surface Craft |
Epoxy Resin Laminated, Splash Waterproof |
|
Standard Full Accessories |
120W Solar Panel, 1Battery Alligator Clip Wire, 4Suction Cups, 2Metal Carabiners |
|
Working Mode |
Real-time solar power output, no built-in storage battery |
|
Installation Methods |
Window suction cup fixing, backpack hanging via carabiner, flat placement |
|
Applicable Load |
12V lead-acid batteries, mobile phones, power banks, camping lights, dashcams |
Product Feature and Application of 20W Portable Monocrystalline Solar Panel Kit
Core Product Competitive Advantages
High Efficiency Monocrystalline Cell with 20.15% Conversion Rate
Premium monocrystalline silicon solar cells deliver outstanding photoelectric conversion performance, far superior to ordinary polycrystalline panels. It can capture scattered sunlight on cloudy days to maintain stable power output, greatly improving power generation efficiency during early morning, dusk and overcast weather, bringing more sufficient outdoor charging capacity for users.
01
Dual USB & DC Dual Output, Dual-Scenario Charging Function
Independent dual output design separates low-voltage digital charging and 12V battery charging: 5V regulated USB port safely charges smartphones, Bluetooth earphones and power banks; 12V DC output port matches alligator clips to maintain and supplement power for car, motorcycle and RV lead-acid batteries, solving two major outdoor power demands with one panel. The built-in voltage stabilizer prevents overvoltage impact on electronic equipment.
02
Ultra-Thin Lightweight Body with Multi-Mode Installation Design
Ultra-thin 3mm slim panel only weighs 170g, will not add extra burden for hiking and backpack travel. Equipped with two matching installation accessories: transparent suction cups for firm adsorption on car windows, tent windows and glass surfaces; heavy-duty metal carabiners for hanging the panel on backpacks, tent frames and outdoor railings, flexible to adjust sunlight receiving angle for maximum power generation.
03
Epoxy Laminated Waterproof & Durable Surface
The whole panel surface is integrally encapsulated with wear-resistant epoxy resin, forming a sealed waterproof layer to resist light rain splashes, dust and outdoor UV erosion, suitable for long-term outdoor exposure during camping and travel. The edge adopts rounded anti-scratch molding craft to avoid scratching hands and backpack fabrics during carrying.
04
Complete Full Accessory Kit & Ordinary Goods Logistics Advantage
Every set comes with full supporting parts including battery clips, suction cups and carabiners, no extra accessories need to be purchased separately for immediate use after unpacking. Without built-in lithium storage battery, the product belongs to ordinary cargo, exempt from special dangerous goods transportation procedures, effectively reducing cross-border logistics cost and delivery cycle.
05
Wide Applicable Scenarios
This multi-purpose portable solar panel covers all portable outdoor power supply scenarios:
Vehicle maintenance charging: Car 12V battery daily trickle charge, motorcycle storage battery maintenance, RV & yacht supplementary power supply
Outdoor hiking & camping: Backpack travel mobile phone emergency charging, camping LED light & small fan power supply, picnic portable power source
Off-grid field equipment: Outdoor monitoring camera power supply, field construction small tool temporary charging, mountain cabin mini power supplement
Daily portable use: Balcony window solar charging, fishing trip portable power, outdoor market stall small equipment power supply
Production Details of 20W Portable Monocrystalline Solar Panel Kit

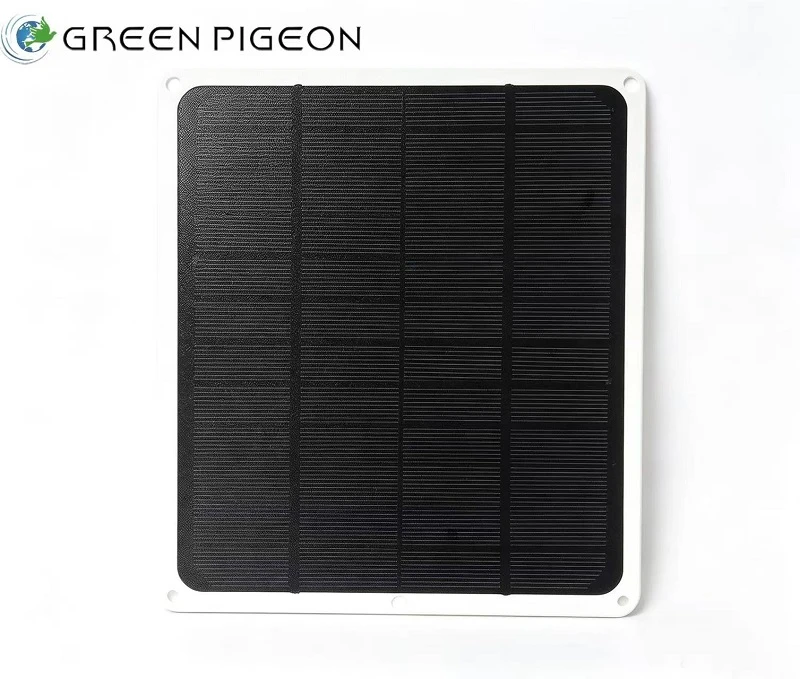

Monocrystalline Cell Epoxy Lamination Production Craft
Each monocrystalline cell undergoes strict power screening before lamination to ensure consistent power output of finished panels. The cell layer is fully sealed with transparent epoxy resin through one-piece high-temperature lamination process, eliminating internal air bubbles that cause aging and power attenuation. The surface resin layer has anti-scratch coating to prevent abrasion during long-term outdoor carrying and adsorption.

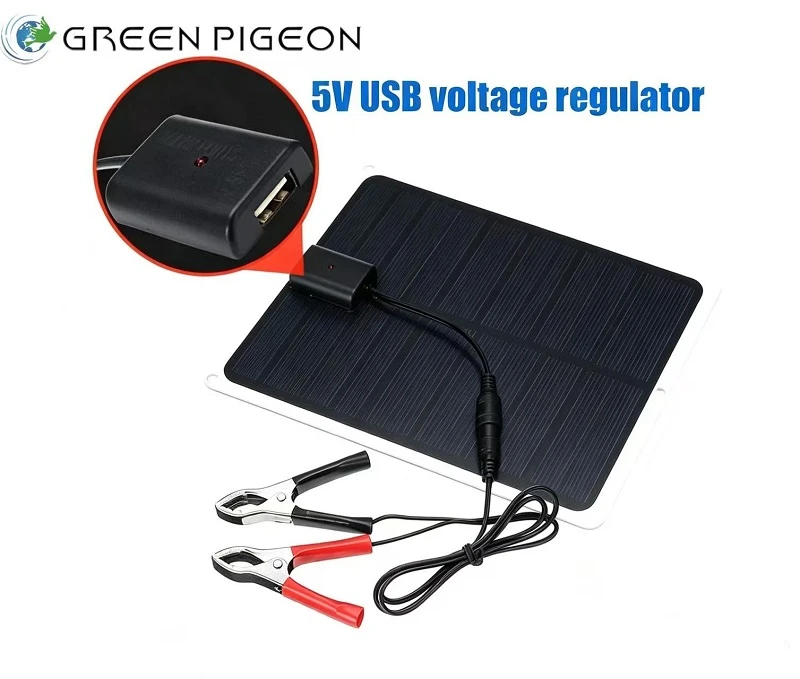

Built-in Voltage Regulator & Supporting Accessory Matching
The rear integrated USB voltage regulator module is fixed with high-temperature waterproof glue, with built-in over-current and over-voltage protection circuits to stabilize 5V output for digital products. Matching alligator clip wires adopt anti-oxidation metal clips with thickened insulating rubber sleeves; suction cups and carabiners are produced with standard matching size to fit the panel reserved hanging holes, avoiding falling off during use.
Standardized Independent Packaging & Pre-Delivery Aging Test
Each full kit is packed into an independent color box with shockproof bubble lining to protect the epoxy panel surface from scratch during long-distance sea and air transportation. All finished solar panel sets pass continuous sunlight charging aging test and splash waterproof inspection before shipment, filtering out defective products with unstable output voltage or poor lamination sealing performance.
Product Qualification of 20W Portable Monocrystalline Solar Panel Kit
- Epoxy Surface Splash Waterproof Performance Test Certificate: Adapt to daily outdoor light rain environment.
- Monocrystalline Silicon Cell 20.15% Conversion Efficiency Inspection Report: Solar wafer photoelectric conversion efficiency testing data.
- Dual Output Voltage & Current Stability Test Document: Standard working parameter qualification under natural sunlight.
- Built-in Voltage Regulator Over-Current Protection Safety Test Certificate: Digital device charging safety verification.
- Panel Anti-UV Anti-Aging Accelerated Aging Test Record: Long-term outdoor anti-fade and anti-delamination material certification.
Deliver, Shipping and Serving of 20W Portable Monocrystalline Solar Panel Kit
Packaging & Bulk Delivery
Single complete set independent color box packaging; bulk mixed wholesale orders are supported for cross-border outdoor gear merchants. Each solar panel is wrapped with shockproof bubble film inside export cartons to prevent epoxy surface scratch and accessory loss during cross-border long-distance logistics. We support EXW, FOB and CIF international trade terms, with stable continuous stock supply of complete 20W panel kits.
Comprehensive After-Sales Support for Cross-Border Sellers
We provide free English product operation manuals, camping & RV scene marketing renderings and store listing copy materials for all wholesale clients. If customers receive scratched panels or damaged accessories caused by logistics collision, we offer free replacement or proportional compensation according to actual damage conditions. Our multilingual customer service team replies to all inquiries about installation operation, charging matching, wholesale bulk pricing and export logistics documents within 24 working hours, solving all product related problems efficiently.
FAQ of 20W Portable Monocrystalline Solar Panel Kit
Q1: Can this solar panel store electricity on its own?
A: There is no built-in storage battery inside the panel, it only outputs real-time electric energy when receiving sunlight; you need to connect batteries or digital devices to store power, and it can be shipped as ordinary goods without battery dangerous goods restrictions.
Q2: What is the difference between USB and DC output ports?
A: 5V USB port is specially for mobile phones, power banks and other small digital devices; 12V DC port matched with alligator clips is used for charging 12V lead-acid batteries such as cars and motorcycles, the two ports can work simultaneously.
Q3: How many installation ways does this panel support?
A: Three installation modes: 1. Adsorb on glass windows via suction cups; 2. Hang on backpacks, tent frames with metal carabiners; 3. Flat lay on lawn, table and flat ground to receive sunlight.
Q4: Can it work normally on rainy and cloudy days?
A: High-efficiency monocrystalline cells can absorb scattered light to generate electricity on cloudy days, but the output current will be lower than sunny days; the epoxy splash-proof surface can resist light rain splashes, do not immerse the whole panel in water for long time.
