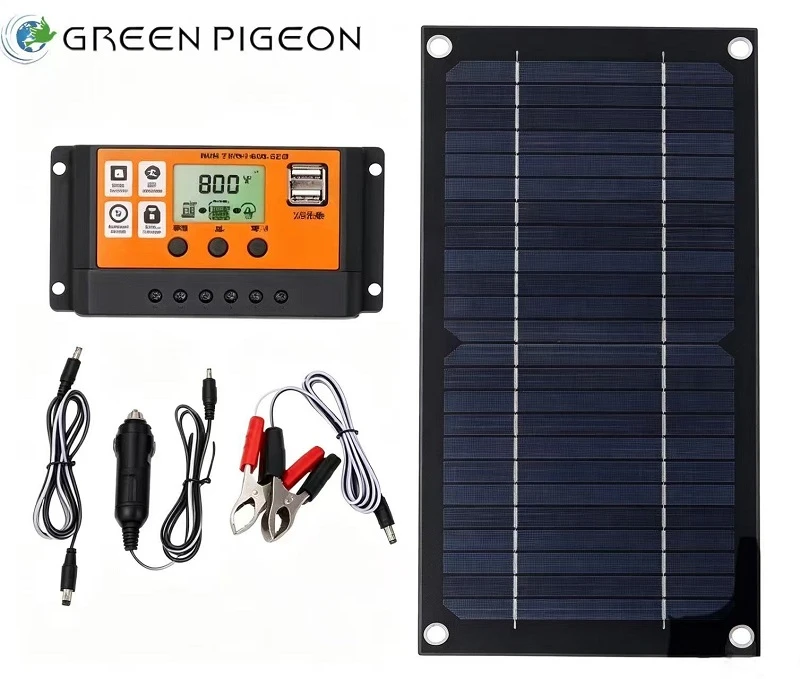

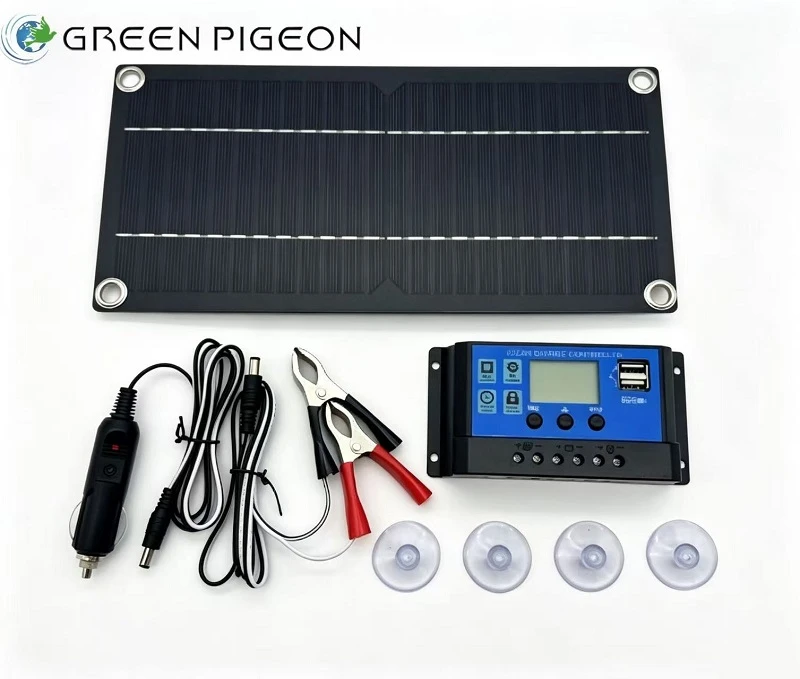

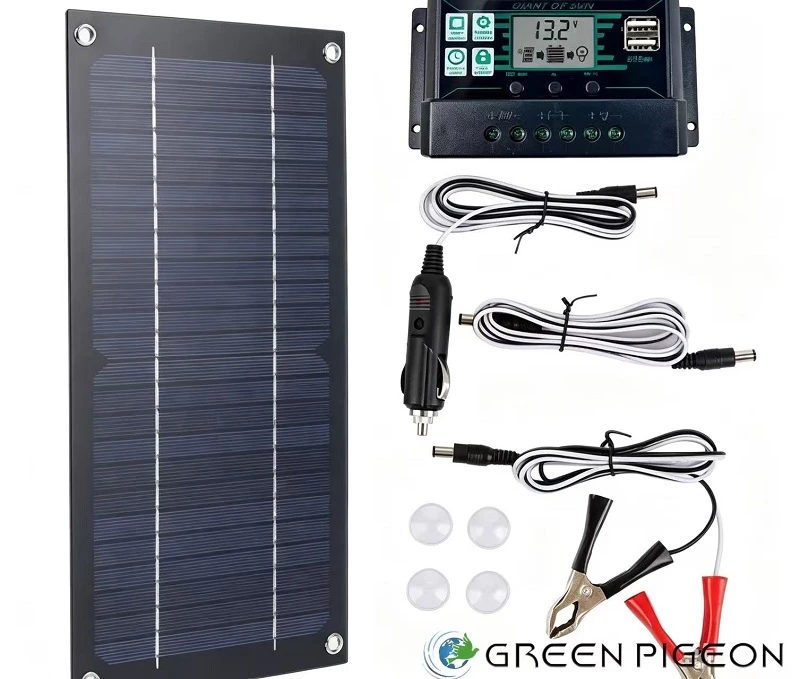

Our 6W mini monocrystalline solar panel kit is a lightweight portable solar charging solution specially designed for car batteries, mobile phones, power banks and small 12V lead-acid batteries, produced in Shenzhen with one-year official warranty. The panel adopts high-efficiency monocrystalline silicon wafers with up to 20% photoelectric conversion efficiency, stably converting sunlight into usable electric energy without built-in energy storage battery, which can be shipped as ordinary goods without special battery logistics restrictions. The whole panel is laminated with durable epoxy resin surface to reach IP65 waterproof grade, resisting light rain splashes and outdoor dust erosion for long-term outdoor use. Standard configuration includes solar panel, battery alligator clips, car charger, 4 suction cups and universal English instruction manual; three optional color controller versions are available for matching: blue 100A controller, green 10A controller and orange 100A controller, all compatible with most lead-acid batteries to realize intelligent charging protection. The slim panel measures 3001452.5mm with only 120g single panel weight, ultra-light and easy to fix on car windows, RV windows and outdoor tents via matching suction cups. Under standard test conditions (AM1.5, 1000W/㎡ irradiance, 25℃), it reaches 6W maximum power output, with dual USB and DC output ports to simultaneously charge multiple small electronic devices. The unified outer package size is 31520058mm with total packing weight 472g for all three controller matching models, compact and convenient for cross-border retail packaging and transportation. Ideal for vehicle emergency power supplement, camping outdoor charging, off-grid small equipment power supply and daily portable solar power supply scenarios.
Product Parameter Specification of 6W Portable Monocrystalline Solar Panel Kit
|
Item Specification |
Details |
|
Product Name |
6W Portable Monocrystalline Solar Panel Charging Kit |
|
Silicon Wafer Type |
Monocrystalline Silicon |
|
Max Power (Pmax) |
6W |
|
Open Circuit Voltage (Voc) |
12V |
|
Maximum Power Voltage (Vmpp) |
18V |
|
Short Circuit Current (Isc) |
1A |
|
Maximum Power Current (Impp) |
0.3A |
|
Output Ports |
USB + DC Dual Output |
|
Solar Cell Conversion Efficiency |
Up to 20% |
|
Waterproof Grade |
IP65 Epoxy Laminated Surface |
|

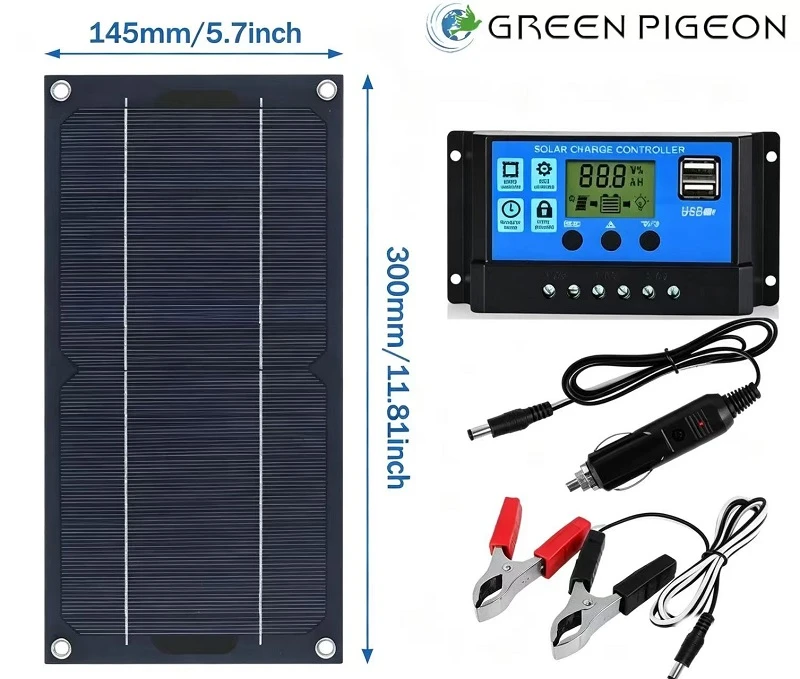

Single Solar Panel Size |
3001452.5mm |
|
Single Panel Net Weight |
120g |
|
Outer Packing Dimension |
31520058mm |
|
Full Set Packing Weight |
472g |
|
Origin |
Shenzhen, China |
|
Warranty Period |
1 Year Official Warranty |
|
Standard Accessories |
1pc Solar Panel, 1pc Battery Alligator Clip, 1pc Car Charger, 4pcs Suction Cups, 1pc English User Manual Optional Accessory Solar Charge Controller (3 options: Blue 100A / Green 10A / Orange 100A) Special Note No built-in storage battery, can be shipped as ordinary goods; manual measurement size has slight tolerance |
|
Standard Test Condition |
AM1.5, Irradiance 1000W/㎡, Temperature 25℃ |
Product Feature and Application of 6W Portable Monocrystalline Solar Panel Kit
Core Product Competitive Advantages
High Efficiency Monocrystalline Silicon Cell with 20% Conversion Rate
Adopts premium monocrystalline silicon solar wafers with stable 20% photoelectric conversion efficiency, far higher than ordinary polycrystalline panels. It efficiently captures sunlight even under weak cloudy light, continuously outputting stable electric energy for vehicle batteries and digital devices, solving outdoor power shortage trouble without grid power supply.
01
IP65 Epoxy Laminated Waterproof & Ultra-Light Portable Design
The whole panel surface is integrally laminated with wear-resistant epoxy resin to reach IP65 dustproof and waterproof standard, capable of resisting daily rain splashes, dust and outdoor UV exposure without delamination. The slim ultra-thin body only weighs 120g, equipped with four transparent suction cups for quick adsorption on car windows, tent surfaces and flat outdoor planes, lightweight and easy to carry for camping, travel and vehicle use.
02
Dual USB & DC Multi-Port Output, Multi-Device Compatibility
Dual output design of USB and DC ports supports simultaneous charging of mobile phones, power banks, car dashcams, small fans and 12V lead-acid storage batteries. Matched with battery alligator clips and car charger, users can freely switch charging modes for vehicle batteries and portable digital devices, with wide compatibility for most small 12V electrical equipment.
03
Three Optional Lead-Acid Battery Controllers for Intelligent Protection
Three matching controller versions are optional to meet different battery capacity demands: blue 100A, green 10A and orange 100A controllers, all specially designed for lead-acid batteries with overcharge, over-discharge and reverse connection protection functions, effectively extending vehicle battery service life and improving charging safety.
04
No Built-In Battery, Convenient Logistics & Complete Standard Accessories
This solar panel has no built-in energy storage battery, classified as ordinary goods without special dangerous goods shipping restrictions, greatly reducing cross-border logistics cost and transportation risk. Every complete set is equipped with full supporting accessories including suction cups, battery clips and car charger, no extra spare parts needed for immediate use after unpacking, with universal English instruction manual for overseas end users.
05
Wide Applicable Scenarios
This portable mini solar panel kit covers all portable outdoor and vehicle charging scenarios:
Vehicle emergency power supply: Car 12V storage battery trickle charging, RV window solar supplementary power, motorcycle battery maintenance charging
Outdoor camping & travel: Mobile phone, power bank, Bluetooth headset outdoor emergency charging, camping small fan / LED light power supply
Off-grid small equipment: Farm monitoring camera power supply, field construction small equipment temporary charging, mountain cabin mini power supplement
Daily portable usage: Balcony window solar charging, picnic outdoor power supply, yacht small electrical equipment auxiliary charging
Production Details of 6W Portable Monocrystalline Solar Panel Kit
Monocrystalline Cell Lamination & Epoxy Waterproof Craft
Each monocrystalline silicon cell undergoes efficiency screening before lamination to ensure uniform power output of finished panels. The cell layer is fully encapsulated by transparent epoxy resin through high-temperature integrated lamination process, eliminating internal air bubbles and isolating water vapor infiltration to achieve IP65 waterproof performance. The edge of the panel is polished smoothly to prevent scratch damage during carrying and installation.
Multi-Type Controller Matching & Accessory Supporting Production
Three color controller models (blue 100A, green 10A, orange 100A) are independently produced with built-in protection circuits for lead-acid batteries, with clear color distinction for easy customer selection. Supporting accessories including alligator clips, car chargers and suction cups are produced with matching size standards, and each accessory undergoes tensile and plugging testing to guarantee service life. All kits are assembled with complete English paper manuals for overseas market use.
Standardized Independent Packaging & Pre-Delivery Inspection
All three controller matching versions adopt unified size outer color boxes with total packing weight 472g, each panel wrapped with shockproof bubble film inside the box to avoid epoxy surface scratch during long-distance sea and air transportation. Every finished solar panel set passes continuous charging aging test and waterproof spray inspection before shipment to filter out defective products with insufficient output power or poor sealing performance.
Product Qualification of 6W Portable Monocrystalline Solar Panel Kit
- IP65 Waterproof & Dustproof Performance Test Certificate: Verified stable operation under outdoor splash and dust environment.
- Monocrystalline Silicon Cell 20% Conversion Efficiency Inspection Report: Solar wafer photoelectric efficiency testing data.
- Solar Panel Output Current & Voltage Stability Test Document: Standard working parameter qualification under AM1.5 test condition.
- Optional Lead-Acid Controller Overcharge Protection Safety Test Certificate: Reverse connection and over-discharge protection performance verification.
- Epoxy Surface UV Anti-Aging Accelerated Aging Test Record: Long-term outdoor anti-fade and anti-crack material certification.
Deliver, Shipping and Serving of 6W Portable Monocrystalline Solar Panel Kit
Packaging & Bulk Delivery
Single complete set independent color box packaging, mixed controller color bulk carton orders are supported for cross-border retail distributors. Each solar panel is wrapped with shockproof bubble film inside export cartons to prevent epoxy surface scratch and accessory loss during long-distance logistics. We support EXW, FOB and CIF international trade terms, with stable continuous stock supply for blue, green and orange three controller matching versions.
Comprehensive After-Sales Support for Cross-Border Sellers
We provide free English product operation guides, car & camping scene marketing renderings and store listing copy materials for all wholesale clients. The product enjoys one-year official warranty; if customers receive damaged panels or defective controllers caused by logistics collision within warranty period, we provide free replacement or proportional compensation according to actual damage conditions. Our multilingual customer service team replies to all inquiries about controller model selection, installation operation, wholesale bulk pricing and export logistics documents within 24 working hours, solving all product related problems efficiently.
FAQ of 6W Portable Monocrystalline Solar Panel Kit
Q1: Does this solar panel store electricity by itself?
A: No built-in storage battery inside the panel, it only converts sunlight into real-time output electric energy, you need to connect battery or digital equipment to store power, and it can be shipped as ordinary goods without battery restrictions.
Q2: What is the difference between the three optional controllers?
A: Blue 100A and orange 100A controllers are suitable for large-capacity lead-acid batteries; green 10A controller matches small-capacity 12V batteries, all with full charging protection functions, different only in maximum current load.
Q3: Can this panel charge car batteries normally on cloudy days?
A: The high-efficiency monocrystalline cell can absorb scattered light to generate electricity on cloudy days, but the charging current will be lower than sunny days, suitable for slow trickle maintenance charging of vehicle batteries.
Q4: Can I use it to charge mobile phones directly without a controller?
A: Yes, the panel has built-in USB output port, you can directly connect mobile phones for emergency charging without matching a controller; the controller is only an optional accessory for lead-acid battery charging protection.
