Our M Series split solar flood light covers four complete power options from 40W up to 200W, designed as a versatile outdoor solar lighting solution for villas, yards, farmlands, parking lots, construction sites and warehouses. Different from all-in-one solar lamps, this split solar flood light comes with an independent solar panel connected by a 4-meter long charging cable, allowing flexible installation to place the solar panel under full sunlight while mounting the lamp body in shaded lighting areas without power loss. Equipped with high-brightness SMD LED lamp beads of different quantities matching each wattage model, this solar projector light delivers high-lumen uniform wide-area illumination with no dark spots and soft anti-glare light output. Built-in precise light sensor enables auto dusk-to-dawn operation: it automatically starts charging under sunlight during daytime and turns on once ambient light fades at night, eliminating manual switching trouble. A supporting wireless remote control is included for users to adjust brightness, set timing and switch lighting modes remotely without climbing up to the lamp. Every model of this solar flood light adopts large-capacity built-in lithium batteries with matched high-efficiency solar panels, supporting long-lasting all-night lighting after fully charged in sunny days. The whole lamp body reaches IP66 waterproof and dustproof grade, with sturdy anti-aging plastic housing that can withstand heavy rain, snow, high temperature and cold outdoor environments all year round. Without grid power wiring, it achieves zero electricity cost for long-term outdoor lighting, perfectly solving power supply troubles for remote rural areas, construction sites and large private courtyards.
Product Parameter Specification of M Series Solar Flood Light
|
Item |
M-40W |
M-60W |
M-100W |
M-200W |
|
Rated Power |
40W |
60W |
100W |
200W |
|
LED Chip Type & Quantity |
36pcs 2835 SMD |
23pcs 5054 SMD |
39pcs 5054 SMD |
60pcs 5054 SMD |
|
Solar Panel Spec |
5V/2W |
6V/6W |
6V/12W |
6V/15W |
|
Built-in Battery Capacity |
1200mAh |
6000mAh |
12000mAh |
18000mAh |
|
Charging Cable Length |
4 Meters |
4 Meters | 4 Meters | 4 Meters |
|
Core Control Function |
Light sensor auto dusk to dawn + wireless remote control |
|||
|
Waterproof Grade |
IP66 Waterproof, Dustproof & UV-resistant |
|||
|
Product Dimension (LWH) |
13012537mm |
20117641mm |
25022541mm |
29026541mm |
|
Single Net Weight |
0.352kg |
0.588kg |
0.881kg |
1.201kg |
|
Packing Accessory |
Solar panel, 4M charging cable, remote controller, mounting brackets & screws |
|||
Product Feature and Application of M Series Solar Flood Light
Core Product Advantages

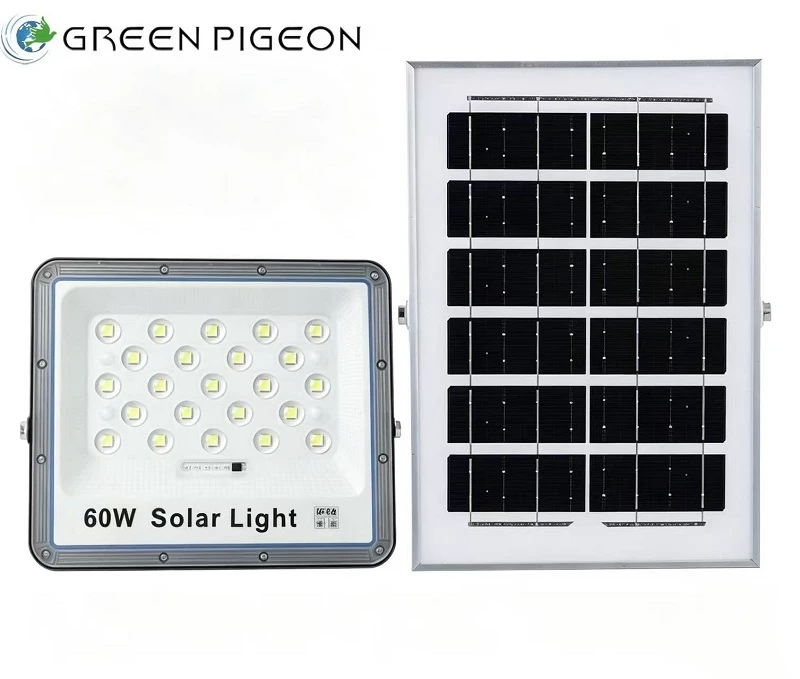

Split Separate Solar Panel with 4M Extra-Long Cable
The split design separates the lamp body and solar panel connected by a 4-meter extended charging wire, bringing ultra-high installation flexibility. Users can fix the solar panel on open sun-exposed walls, roofs or poles to capture maximum sunlight, while installing the lamp body under eaves, shade or back walls that lack direct sunshine. This solves the common charging failure problem of integrated solar lights mounted in shadowed positions, greatly improving energy conversion efficiency and daily power storage capacity even in partially shaded yards.
Auto Dusk-to-Dawn Light Sensor + Full-Function Remote Control
The high-sensitivity built-in light sensor detects surrounding light intensity automatically. It stops lighting and begins charging at dawn, and activates the lamp automatically when darkness falls without human operation. The matched remote controller supports multi-functional adjustments including brightness level switching, working time setting and mode locking, allowing users to customize lighting effects according to actual usage demands without approaching the high-mounted lamp body.
Multi-Wattage SMD High-Brightness Lamp Beads & Large-Capacity Battery
Each power model is equipped with matched quantity of high-efficiency SMD LED chips, featuring high luminous efficiency, low light decay and long service life. The battery capacity is upgraded synchronously with power rating: 1200mAh for 40W, up to 18000mAh for 200W model, storing enough solar power to sustain stable long-hour lighting overnight after full charge. Uniform wide-angle light distribution covers large areas without glare, protecting human eyes while providing sufficient illumination.
IP66 All-Weather Durable Waterproof Housing
The lamp shell adopts thickened engineering plastic with seamless injection molding sealing craft, reaching IP66 waterproof grade. It effectively blocks rainwater, dust, fog and snow from penetrating internal circuits, stably operating under extreme high temperature summer and freezing cold winter outdoor conditions, with strong anti-aging and anti-UV performance for long-term outdoor service
Wide Application Scenarios
This multi-power split solar flood light adapts to various large and small outdoor lighting scenarios:
Residential household spaces: Villa front yards, backyard lawns, garden walkways, exterior house walls, garage driveways, courtyard gates
Rural & agricultural areas: Farm fences, livestock sheds, orchard aisles, countryside roads, rural warehouse exteriors
Commercial & construction zones: Temporary construction sites, factory parking lots, storage yard perimeters, logistics warehouse outdoor lighting
Off-grid remote locations: Mountain cabins, rural areas without municipal power, outdoor camps, field planting bases
Public auxiliary lighting: Community side roads, park peripheral areas, outdoor billboard supplementary lighting
Production Details of M Series Solar Flood Light
Hierarchical Matching Light Source, Solar Panel & Battery Craft
Every wattage model undergoes precise matching design of LED lamp beads, solar panel power and lithium battery capacity during production. The SMD lamp beads are arranged in uniform matrix layout to guarantee even light output without partial dimness. Solar panels are covered with scratch-resistant transparent protective glass, each batch passing photoelectric conversion efficiency testing to ensure stable energy absorption. The built-in lithium batteries go through repeated charge-discharge aging cycles to avoid rapid power attenuation after long-term outdoor use, with overcharge and over-discharge protection circuits pre-installed inside the lamp control board.
Split Waterproof Connection & Sturdy Housing Manufacturing
The connection port between 4-meter charging cable and lamp body is equipped with rubber waterproof plug to prevent rainwater infiltration at wiring joints. The lamp body is one-piece injection molded with thickened anti-crack plastic, with integrated heat dissipation structure on the back to release heat generated by LED chips during long-hour lighting, slowing down lamp aging. The universal adjustable mounting bracket comes with anti-rust metal fixing screws, supporting wall-mounted and pole-mounted dual installation ways.
Complete Standardized Accessories & Clear Product Labeling

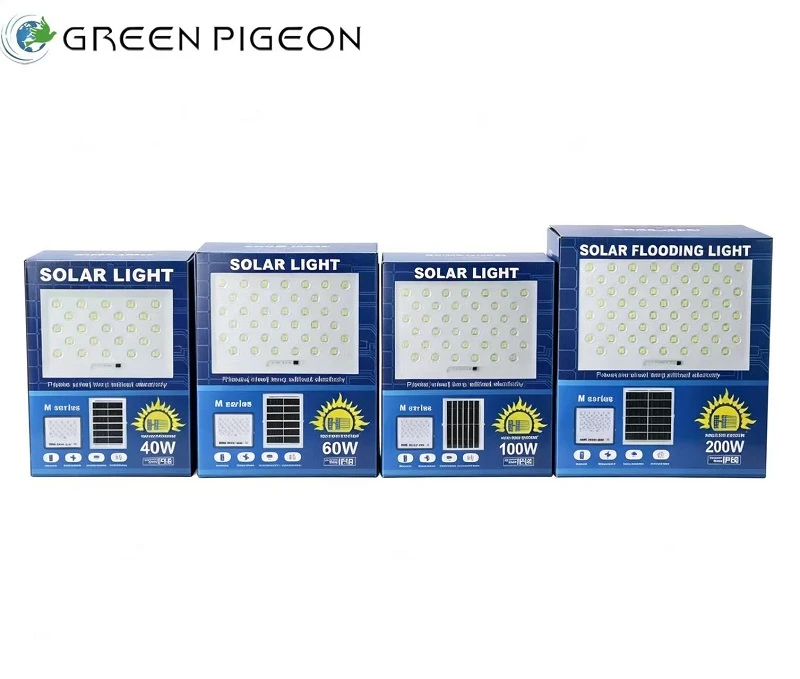

Each single set includes complete supporting accessories: independent solar panel, 4-meter long charging wire, wireless remote control, installation bracket and fixed screws, no extra spare parts required for assembly. Outer color boxes are printed with clear model distinction, power parameter comparison, installation schematic and function introduction, making it easy for buyers to distinguish four wattage specifications. All finished lamps pass continuous aging lighting inspection before delivery to filter out defective products with unstable charging or light failure.
Product Qualification of M Series Solar Flood Light
- IP66 Waterproof & Dustproof Performance Test Certification: Verified to work stably in rainy, foggy and dusty outdoor environments.
- Solar Panel Photoelectric Conversion Efficiency Inspection Report: Standardized efficiency test documents for each power grade solar panel.
- SMD LED Lamp Bead Lumen & Service Life Qualification: High luminous efficiency, low light decay LED chip certification.
- Built-in Lithium Battery Safety Test Certificate: Overcharge, over-discharge and short-circuit protection safety verification.
- Light Sensor & Remote Control Function Test Record: Sensitivity and remote signal stability inspection records for automatic lighting system.
Deliver, Shipping and Serving of M Series Solar Flood Light
Packaging & Bulk Delivery
Single set package contains 1 solar flood light, matching solar panel, 4M charging cable, remote controller and installation hardware; mixed bulk carton packing is available for wholesale orders of mixed wattages. Each lamp and solar panel are wrapped with shockproof foam inside export cartons to prevent plastic shell cracking and circuit damage during long-distance sea and air transportation. We support EXW, FOB and CIF international delivery terms, with stable continuous stock supply for global distributors of all four power models.
Comprehensive After-Sales Support for Cross-Border Sellers
We provide free English product installation guides, scene marketing renderings and listing copy materials for all wholesale customers. If customers receive damaged lamps or solar panels caused by logistics collision, we offer free replacement or proportional compensation based on actual damage conditions. Our professional multilingual customer service team replies to all inquiries about model selection, installation wiring, remote operation, wholesale pricing and certification documents within 24 working hours, solving all product related problems efficiently.
FAQ of M Series Solar Flood Light
Q1: Can I install the solar panel far away from the lamp body?
A: Yes, the supporting charging cable is 4 meters long, you can place the solar panel in sunlit positions and mount the lamp in shaded areas within 4 meters distance.
Q2: Does the light automatically turn on at night without manual operation?
A: Equipped with built-in light sensor, it automatically charges by day and turns on once it gets dark at night, fully automatic operation without manual switch.
Q3: Which wattage model should I choose for my yard?
A: 40W for small balconies and narrow walkways; 60W for medium family courtyards; 100W for large yards and farm aisles; 200W for parking lots, construction sites and wide open areas.
Q4: Is the remote control functional when the lamp is installed high up?
A: The wireless remote control has stable receiving signal, you can adjust brightness, timing and modes remotely without climbing to the lamp position.
