Our XY201 series solar step fence lights include two classic appearance options: black shell model XY201/H and brown shell model XY201, designed as low-profile decorative outdoor solar lighting for garden steps, railings, fences, patio walls and courtyard edges. This mini-sized solar stair light adopts a compact 784542mm square ABS plastic body with only 50g single weight, easy to install without complicated wiring or grid power connection. Equipped with premium polysilicon solar panel and 1*F5 warm white LED chip (3000K warm glow), it delivers soft eye-friendly warm light that creates cozy ambient atmosphere for outdoor landscapes. Built-in sensitive light sensor realizes fully automatic cycle operation: the panel absorbs sunlight to charge the built-in 1.2V 200mAh nickel-hydrogen battery for 6-8 hours under direct sunshine during daytime, then the lamp automatically turns on at dusk and maintains continuous lighting for 8-10 hours all night long without manual switching. The manual plug-type slide switch supports one-time power setting, no repeated operation required after installation. Reaching IP44 waterproof grade, the sturdy ABS casing resists daily rain splashes, dust and outdoor temperature changes, stable for year-round outdoor use. We supply flexible pack specifications including 4pcs, 8pcs, 12pcs and 16pcs sets to meet bulk landscaping project and retail household demands; single unit packing is available but not recommended as individual lamps are prone to damage during long-distance logistics transport. Perfect for villa gardens, backyard staircases, terrace railings, park walkways and farm fence decorative lighting, this zero-electric-cost solar step light greatly improves night safety and aesthetic sense of outdoor spaces.
Product Parameter Specification of XY201 Solar Step Fence Lights
|
Item Specification |
Details |
|
Product Model |
XY201 (Brown Shell Warm Light) / XY201/H (Black Shell Warm Light) |
|
Product Name |
Solar Step Fence Light |
|
Rated Power |
2W |
|
Operating Voltage |
1.2V |
|
Light Source |
1pc F5 Straw Hat LED Chip, Warm White 3000K |
|
Solar Panel |
2V 80mA Polysilicon Solar Panel |
|
Built-in Battery |
1.2V 200mAh Nickel-Hydrogen Battery |
|
Charging Time |
6~8 hours under direct sunlight |
|
Continuous Lighting Duration |
6h ~ 10h (Fully charged lasts 8-10h) |
|
Switch Type |
Manual Plug Slide Switch |
|
Light Control Function |
Auto Dusk-to-Dawn Light Sensor |
|
Waterproof Grade |
IP44 Rain & Dust Resistant |
|
Housing Material |
Impact-Resistant ABS Engineering Plastic |
|
Appearance Options |
Black Shell (XY201/H), Brown Shell (XY201) |
|

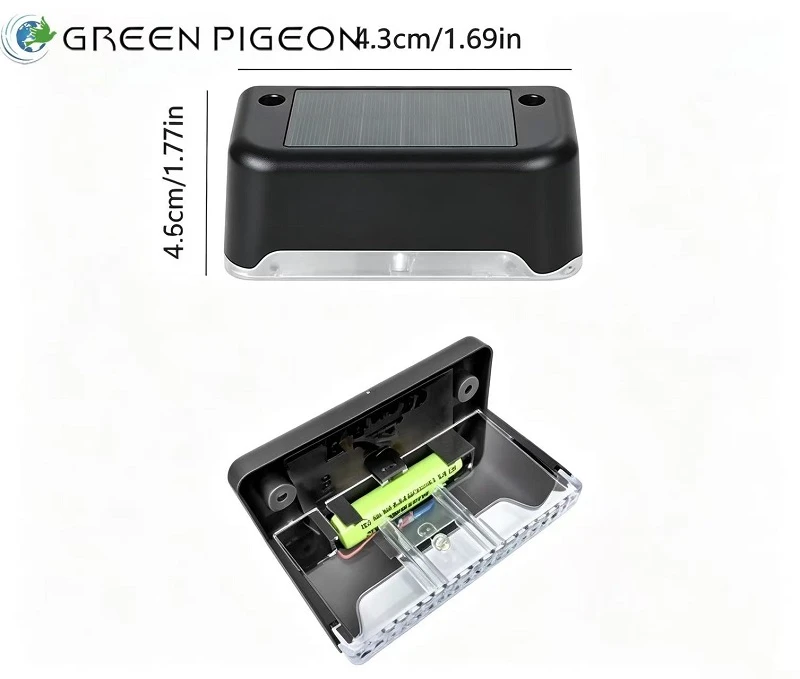

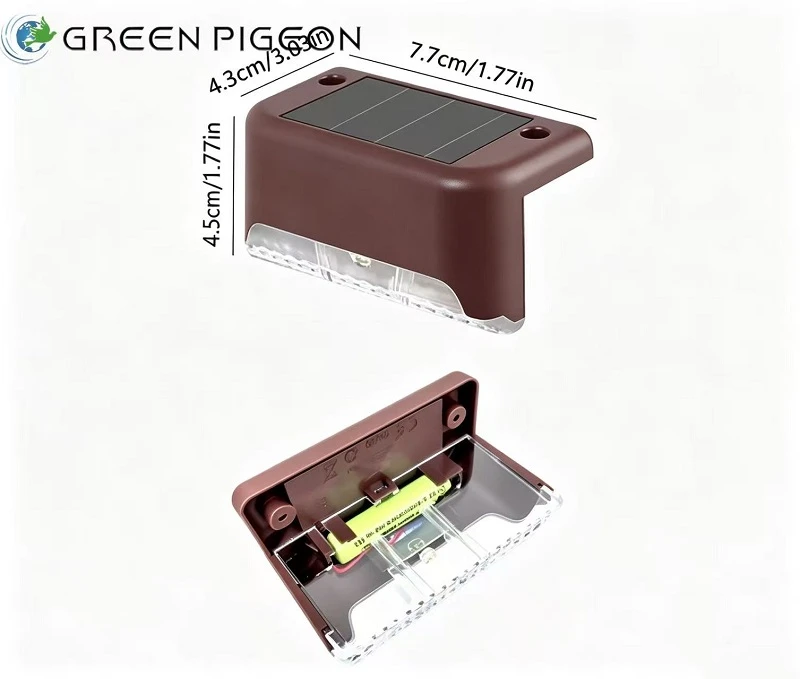

Overall Dimension |
78mm(L)*45mm(W)*42mm(H) |
|
Single Lamp Weight |
50g |
|
Packing Specifications |
4pcs / 8pcs / 12pcs / 16pcs per set; single unit optional (not recommended for shipping) |
Product Feature and Application of XY201 Solar Step Fence Lights
Core Product Competitive Features
Auto Light Control Dusk-to-Dawn Intelligent Operation
High-precision built-in light sensor detects ambient brightness automatically, completely cutting off manual operation trouble. The lamp stops lighting and starts solar energy storage when sunrise comes, and activates soft warm light immediately once the environment turns dark at night. Users only need to toggle the internal plug switch once during installation, then the light will run automatically day and night without secondary adjustment.
01
High Conversion Polysilicon Solar Panel & Long Lasting Warm LED Light
The top integrated polysilicon solar panel features high photoelectric conversion efficiency, fully capturing solar radiation even on slightly cloudy days to replenish battery power steadily. The single F5 warm white LED bead emits soft 3000K warm glow with uniform diffused light through frosted light cover, no harsh glare, building gentle romantic outdoor ambiance without dazzling human eyes.
02
Lightweight Tough ABS Shell & IP44 All-Weather Protection
Whole lamp body is molded with thickened ABS engineering plastic, featuring strong toughness, anti-aging, anti-fade and lightweight advantages (only 50g for single lamp). Sealed structure reaches IP44 waterproof standard, effectively blocking daily rain splashes, dust and moisture erosion, adapting to summer high temperature and winter low temperature outdoor environments without circuit short circuit or shell cracking.
03
Dual Classic Shell Colors & Multiple Flexible Pack Options
Two mainstream appearance styles (matte black shell and retro brown shell) match different garden decoration styles: black fits modern minimalist courtyards, brown matches rustic, wooden and vintage landscape designs. Multiple pack quantities from 4pcs to 16pcs are provided for choice, suitable for small household DIY decoration and large garden engineering bulk purchase; bundled multi-piece sets greatly reduce single lamp damage risk during transportation compared with single unit packing.
04
Simple Hidden Plug Switch & Easy Wall Mount Installation
Hidden slide plug switch is set inside the lamp body, easy to turn on/off by hand without complicated tools. The integrated mounting base design allows users to fix the lamp on stair risers, fence rails and wall edges with screws in minutes, no wiring, transformer or external power supply needed, realizing true zero electricity cost outdoor lighting.
05
Wide Application Scenarios
This decorative solar step light covers all kinds of outdoor landscape and safety lighting scenes:
Residential villa spaces: Front & backyard stair risers, terrace railings, garden fence edges, courtyard wall skirting, porch walkways
Landscape & park projects: Community park steps, garden trail borders, green belt side auxiliary lighting, outdoor stone stair decorative lights
Farm & outdoor leisure zones: Orchard fence marking lights, outdoor camping aisle lights, courtyard balcony low-profile ambiance lighting
Commercial landscape: Hotel garden walkways, villa scenic area boundary lighting, outdoor café terrace edge lights
Production Details of XY201 Solar Step Fence Lights
Solar Panel & Light Source Precision Matching Craft
Each polysilicon solar panel undergoes strict photoelectric conversion efficiency testing before assembly, ensuring stable energy absorption efficiency under natural sunlight. The F5 warm LED lamp beads are welded with anti-loose soldering technology, paired with frosted matte light cover to diffuse light evenly and avoid concentrated glare. Internal nickel-hydrogen batteries pass repeated charge-discharge aging cycles to extend cycle service life, preventing rapid power attenuation after long-term outdoor exposure.
Integrated Sealed ABS Housing & Waterproof Structure
The lamp shell is one-piece injection molded with matte anti-scratch ABS plastic, with seamless sealing between solar panel and main body to stop rainwater infiltration. The internal plug switch is equipped with dust-proof isolation slot to prevent outdoor dust from causing poor contact. The reserved mounting holes on both sides of the lamp body are reinforced with thickened plastic to avoid cracking during screw fixing.
Complete Standardized Packing & Clear Appearance Distinction
Black shell and brown shell versions adopt independent color box printing for easy specification distinction. Multi-piece sets are packed with shockproof partition paper inside cartons to reduce collision damage during transit, solving the fragile transportation problem of single lamp packaging. Every finished solar step light passes continuous lighting aging test and waterproof spray inspection before delivery to eliminate defective products with failed light control or weak brightness.
Product Qualification of XY201 Solar Step Fence Lights
- IP44 Waterproof & Dustproof Performance Test Certificate: Verified to resist daily rain splash and dust accumulation for long-term outdoor placement.
- Polysilicon Solar Panel Conversion Efficiency Inspection Report: Stable energy absorption performance under natural sunlight conditions.
- Nickel-Hydrogen Storage Battery Safety Test Document: Overcharge and over-discharge protection performance verification.
- Warm White LED Light Source Lumen & Service Life Qualification: Low light decay LED chip certification for long-time stable lighting.
- Outdoor ABS Plastic Anti-Aging & UV Resistance Test Record: Shell anti-fade and anti-crack performance inspection data.
Deliver, Shipping and Serving of XY201 Solar Step Fence Lights
Packaging & Bulk Delivery
Single set options: 4pcs / 8pcs / 12pcs / 16pcs per color box; mixed black & brown shell bulk carton orders are supported for wholesale distributors. Each lamp set is wrapped with shockproof partition paper inside export cartons to avoid shell scratch and circuit damage during sea and air long-distance transportation. We support EXW, FOB and CIF international trade terms, with stable continuous stock supply for both black shell XY201/H and brown shell XY201 models.
Full-Range After-Sales Support for Cross-Border Sellers
We provide free English product installation guides, garden scene marketing renderings and store listing copy materials for all wholesale clients. If customers receive damaged lamps caused by logistics collision, we offer free replacement or proportional compensation based on actual damage conditions. Our multilingual customer service team replies to all inquiries about color selection, pack quantity matching, installation methods, wholesale pricing and export certification documents within 24 working hours, solving all product related problems efficiently.
FAQ of XY201 Solar Step Fence Lights
Q1: How long can the solar step light stay lit after full solar charging?
A: After 6-8 hours of direct sunlight charging, the lamp can keep warm light on for 8 to 10 hours continuously at night, meeting all-night landscape lighting demands.
Q2: Can I choose black shell and brown shell mixed sets?
A: Yes, we support mixed color bulk orders for wholesale customers, you can freely match black XY201/H and brown XY201 lamps according to your market demand.
Q3: Is single unit packing recommended for purchase?
A: We do not recommend single lamp packing, as individual lamps lack buffer protection and are easy to crack or damage during long-distance logistics transport; 4pcs and above multi-piece sets have better shockproof protection.
Q4: Does this light work normally on cloudy rainy days?
A: It can absorb weak scattered light to charge the battery on cloudy days, but the lighting duration will be slightly shorter than sunny days; IP44 waterproof shell can resist normal rain splashes during use.
