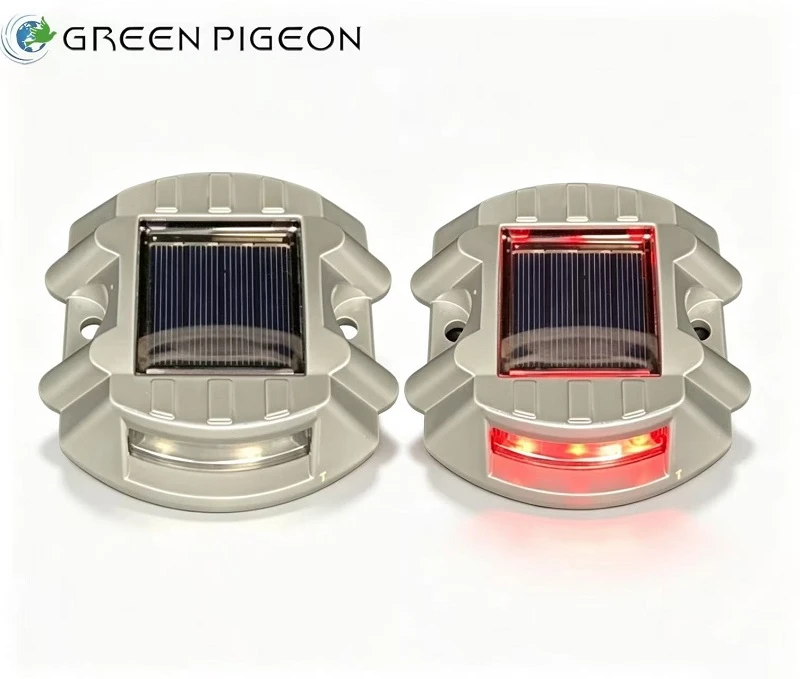

Our SRD601 horseshoe-shaped solar road stud light is a heavy-duty self-adhesive solar pavement marker widely applied in highway traffic, community roads, parking lots, garden walkways and ship deck safety warning fields. This solar deck marker adopts sturdy die-cast aluminum main housing matched with UV-resistant PC top cover, featuring high compression resistance and long outdoor service life. Equipped with high-efficiency monocrystalline silicon solar panel (2.5V 120mAh) and built-in 600mAh Ni-MH rechargeable battery, it realizes full solar self-charging without grid power supply, cutting long-term traffic lighting maintenance cost drastically. It comes with two adjustable working modes: steady constant light and rhythmic flash warning light, with five optional high-brightness LED colors including white, yellow, red, green and blue to meet different traffic classification marking demands. Six pieces of 5MM ultra-high brightness LED chips are arranged for double-sided light emission, offering over 500 meters long-distance visible range to remind drivers and pedestrians of road boundary clearly even on rainy, foggy and dark nights. Under standard sunlight intensity, one full day of solar charging supports 48 hours continuous flashing warning light or 20 hours steady constant lighting. The whole light reaches IP67 superior waterproof grade, adapting to harsh working temperature range from -20℃ to +60℃ all year round. The overall size is 1079623mm with integrated mounting holes for screw fixing or self-adhesive paste installation, bearing up to 10 tons static pressure to resist small vehicles rolling. The surface adopts fine spray coating craft to present glossy uniform texture, while the top UV-proof PC cover shields the solar panel from ultraviolet aging and boosts compression resistance. With over 3 years battery service life and 1-year official product warranty, this solar road stud forms continuous optical lane outlines when laid in rows, clearly marking road edge contours and delivering strong traffic guidance & warning effect for all road environments.
Product Parameter Specification of Horseshoe Solar Road Stud Light SRD601
|
Item Specification |
Details |
|
Product Model |
SRD601 Horseshoe Solar Road Stud Deck Marker Light |
|
Power Supply |
2.5V 120mAh Monocrystalline Silicon Solar Panel |
|
Energy Storage Battery |
600mAh Ni-MH Rechargeable Battery |
|
LED Configuration |
6pcs 5MM Ultra High Brightness LED, Double-Sided Light Emission |
|
Working Modes |
Steady Constant Light / Flashing Warning Light |
|
Optional LED Light Colors |
White, Yellow, Red, Green, Blue Visible Viewing Distance More Than 500 Meters Full Charge Working Duration 48H (Flashing Mode) / 20H (Constant Light Mode) Battery Service Life Over 3 Years; 1 Year Official Product Warranty |
|
Operating Temperature Range |
-20℃ ~ +60℃ |
|
Main Material Die-Cast Aluminum |
Alloy + UV Resistant PC Cover |
|

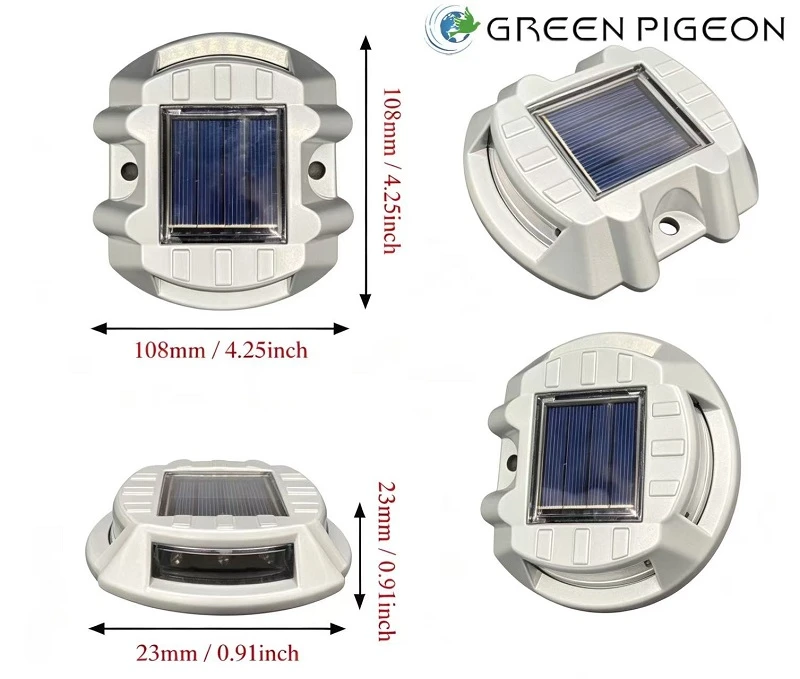

Overall Dimension |
107mm(L)*96mm(W)*23mm(H) |
|
Waterproof Grade |
IP67 Dustproof & Waterproof Compression Resistance Max 10 Tons Static Pressure (Not For Heavy Truck Rolling) |
|
Single Net Weight |
0.31KG Per Piece |
|
Single Retail Package |
1 Piece Per Small White Box Export Carton Spec Carton Size:342428CM, 48PCS Per Outer Carton |
|
Carton Gross / Net Weight |
16KG Gross Weight / 15KG Net Weight Per Carton |
Product Feature and Application of Horseshoe Solar Road Stud Light SRD601
Core Product Competitive Advantages
High Efficiency Monocrystalline Silicon Solar Self-Charging System
The top embedded monocrystalline silicon solar panel achieves excellent photoelectric conversion efficiency, fully absorbing solar radiation during daytime to charge internal 600mAh Ni-MH battery without external power wiring. After one full day of standard sunlight charging, the marker sustains 48 hours flashing warning light or 20 hours steady lighting, providing long-lasting all-night traffic marking without frequent maintenance. The UV-proof transparent PC cover above the panel blocks ultraviolet ray erosion, preventing solar panel aging and cracking while improving overall compression performance.
01
Dual Working Modes & Five Optional LED Warning Colors
Two switchable light modes fit diverse traffic scenarios: constant steady light for fixed lane boundary marking, rhythmic flash mode for hazard section warning. Five customizable LED colors (white, yellow, red, green, blue) support classified road marking: red for danger zones, yellow for slow-down sections, white for main lane outlines, green for safety passages, blue for parking lot partition lines. Six double-sided high-brightness LED lamps emit light from both left and right sides, delivering over 500m ultra-long visible distance to ensure drivers notice road marks in heavy fog, rain and total darkness.
02
Heavy-Duty Die-Cast Aluminum Shell IP67 Waterproof & 10-Ton Pressure Resistance
The whole lamp housing is one-piece die-cast aluminum with fine glossy spray coating finish, tough and anti-corrosion for long-term outdoor pavement exposure. Sealed integrated structure reaches IP67 waterproof standard, effectively isolating rainwater, snow and dust infiltration; slight water mist inside the lampshade after sun exposure is a normal physical phenomenon without affecting service life. The thickened aluminum body bears up to 10 tons static pressure, resisting rolling of small passenger cars, effectively avoiding damage from daily vehicle traffic. It works stably under extreme temperature from -20℃ freezing winter to 60℃ scorching summer without circuit failure.
03

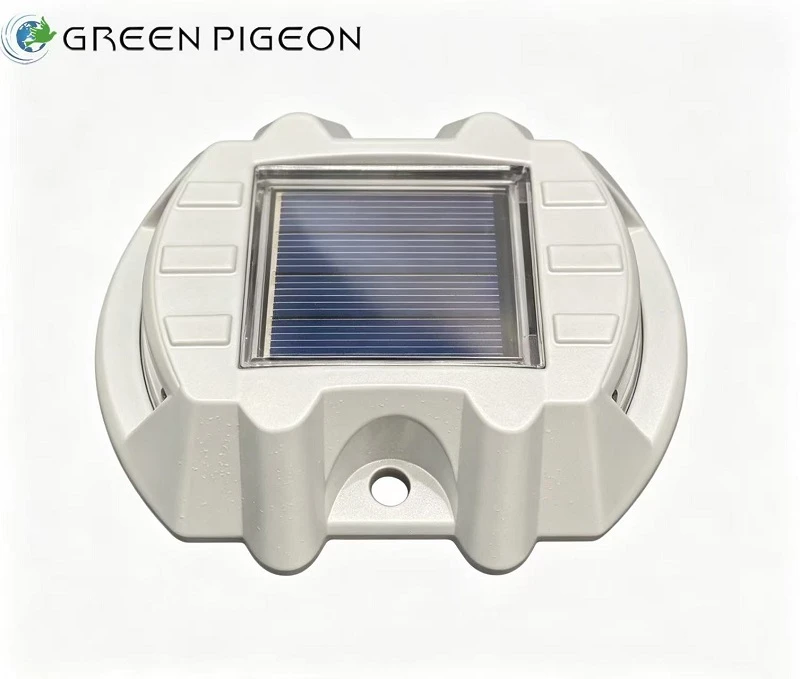

Dual Installation Methods & Compact Horseshoe Shape Design
Unique horseshoe flat outline fits pavement surface perfectly, supporting two installation solutions: screw fixed mounting via reserved side holes or self-adhesive paste installation for quick temporary marking. Slim 23mm ultra-thin thickness does not protrude excessively from the road surface, avoiding vehicle tire scratch impact. Glossy spray-treated aluminum surface resists paint peeling and fading under long-term outdoor UV exposure, maintaining neat appearance for years.
04
Long Service Life & Complete Bulk Export Packaging
The built-in Ni-MH battery supports more than 3 years of cyclic charging and discharging, with official 1-year full product warranty for global buyers. Independent small white box single-piece packaging prevents scratch and collision damage during transit, matched uniform export carton with 48pcs loading capacity for wholesale traffic engineering orders, with clear gross and net weight data for logistics calculation.
05
Wide Application Scenarios
This solar road stud marker is widely used in all traffic safety marking and outdoor pavement warning scenes:
Highway & Municipal Traffic: Urban road lane dividing lines, highway edge contour marking, crosswalk warning zones, curve dangerous road sections, tunnel entrance guiding markers
Parking Lot & Community Roads: Indoor and outdoor parking space partition lines, residential community pedestrian walkway boundaries, underground garage ramp warning lights
Landscape & Pedestrian Zones: Park garden walkway edge markers, scenic spot footpath safety lights, villa courtyard pavement decorative warning lights
Special Scenarios: Ship deck safety boundary markers, factory workshop aisle guiding lights, construction temporary road warning signs, rural village road edge outlining
Production Details of Horseshoe Solar Road Stud Light SRD601
Solar Panel & LED Light Source Matching Production Craft
Each monocrystalline silicon solar panel undergoes photoelectric conversion efficiency screening before assembly to guarantee stable charging speed under weak sunlight. Six 5MM high-brightness LED chips are welded symmetrically on both sides of the internal circuit board to realize double-sided uniform light emission, avoiding single-side dim marking blind spots. The internal Ni-MH battery passes repeated charge-discharge aging cycles to extend cycle life, with built-in overcharge and over-discharge protection circuit to prevent battery damage after long-term outdoor use.
Die-Cast Aluminum Housing & Sealed Waterproof Manufacturing
The horseshoe shell is die-cast from thickened aluminum alloy in one piece, then surface spray coating treatment is applied to form glossy anti-oxidation protective layer. The top PC cover is injection molded with UV anti-aging raw material, tightly clamped with the aluminum shell via buckle sealing structure, equipped with waterproof rubber gaskets at all splicing gaps to reach IP67 dust and water resistance. The reserved mounting holes are reinforced with thick aluminum wall to prevent cracking during screw installation.
Standardized Independent Packaging & Pre-Delivery Aging Inspection
Every single solar road stud is packed into an individual white small box with shockproof foam liner to protect aluminum shell and PC cover from scratch during long-distance sea and air transportation. 48pcs standardized export outer cartons are used for bulk wholesale orders, with clear printed carton size and weight data for logistics arrangement. All finished road studs undergo continuous 48-hour flashing light aging test and waterproof spray inspection before shipment, filtering out defective products with weak LED brightness or failed solar charging function.
Product Qualification of Horseshoe Solar Road Stud Light SRD601
- IP67 Waterproof & Dustproof Performance Test Certificate: Verified stable operation under long-term rainy, foggy outdoor pavement environment.
- Monocrystalline Silicon Solar Panel Photoelectric Conversion Efficiency Inspection Report: Stable energy storage performance under natural sunlight.
- Die-Cast Aluminum Shell 10-Ton Compression Resistance Pressure Test Document: Static bearing safety verification data.
- Ni-MH Rechargeable Battery Charge-Discharge Cycle Safety Test Certificate: Overcharge, over-discharge protection performance qualification.
- Ultra-High Brightness LED Visible Distance Test Record: Over 500 meters long-distance marking brightness inspection data.
Deliver, Shipping and Serving of Horseshoe Solar Road Stud Light SRD601
Packaging & Bulk Delivery
Single piece independent white small box packaging; mixed multi-color bulk carton orders are supported for traffic engineering wholesale distributors. Each solar road stud is wrapped with shockproof foam inside 48pcs export outer cartons to avoid aluminum shell deformation and PC cover cracking during cross-border long-distance sea and air logistics. We support EXW, FOB and CIF international trade terms, with stable continuous stock supply for all five LED color options (white/yellow/red/green/blue).
Comprehensive After-Sales Support for Cross-Border Sellers
We provide free English product installation manuals, road construction scene marketing renderings and store listing copy materials for all wholesale clients. We offer 1-year official product warranty; if customers receive damaged studs caused by logistics collision or defective products within warranty period, we provide free replacement or proportional compensation according to actual conditions. Our multilingual customer service team replies to all inquiries about color selection, installation methods, wholesale bulk pricing and traffic engineering certification documents within 24 working hours, solving all product related problems efficiently.
FAQ of Horseshoe Solar Road Stud Light SRD601
Q1: Can this solar road stud withstand heavy truck rolling?
A: The product supports maximum 10 tons static compression resistance, suitable for small passenger cars, but not recommended for repeated rolling of heavy large trucks to avoid shell deformation.
Q2: Is water mist inside the PC lampshade normal after sun exposure?
A: Yes, slight water vapor mist inside the cover is a normal physical condensation phenomenon caused by temperature difference, it will not affect the internal circuit, LED light and solar panel service life.
Q3: How long can the light work after a full day of solar charging?
A: Under standard sunlight intensity, flashing warning mode lasts 48 consecutive hours, steady constant light mode lasts 20 consecutive hours after full charge.
Q4: Can I choose multiple mixed LED colors in one bulk carton?
A: Yes, we support mixed color matching for wholesale engineering orders, you can freely combine white, yellow, red, green and blue road studs according to road marking design demands.
