This compact portable power bank adopts premium aluminum alloy shell and high-density polymer lithium cell, built-in 19cm long 2-in-1 braided fast charging cable compatible with iPhone Lightning and Type-C Android devices, eliminating extra cable carry trouble for travel and daily commuting. Max 22.5W PD super fast charging supports multi-protocol quick refilling for iOS, Huawei, Xiaomi and all mainstream smartphones. Equipped with intelligent LED digital screen to real-time display remaining battery percentage, built-in high-frequency temperature control chip for constant temperature charging without overheating. Energy conversion efficiency ≥68%, stable and long-lasting power output. Mini slim body size 1097026mm, only 175g lightweight, two minimalist color options: Titanium Black and Gilded White, exquisite metal texture for portable daily use. Full multi-layer safety protection circuit prevents overcharge, over-discharge, short circuit and overheating, ideal for business trips, outdoor travel and emergency spare power supply.
Product Parameter Specification of 10000mAh Built-in Cable Power Bank
|
Item |
Specification Data |
|
Full Product Name |
22.5W PD Fast Charging Portable Power Bank With Built-in 2-in-1 Braided Cable |
|
Internal Cell Type |
Polymer Lithium Ion Cell |
|
Rated Capacity |
10000mAh / 3.85V / 38.5Wh |
|
Energy Conversion Efficiency |
≥68% |
|
Max Output Power |
22.5W |
|
Built-in Cable Length |
Approx 19cm, 2-in-1 (Lightning + Type-C) Braided Cord |
|
Outer Shell Material |
Aluminum Alloy |
|
Overall Product Dimension |

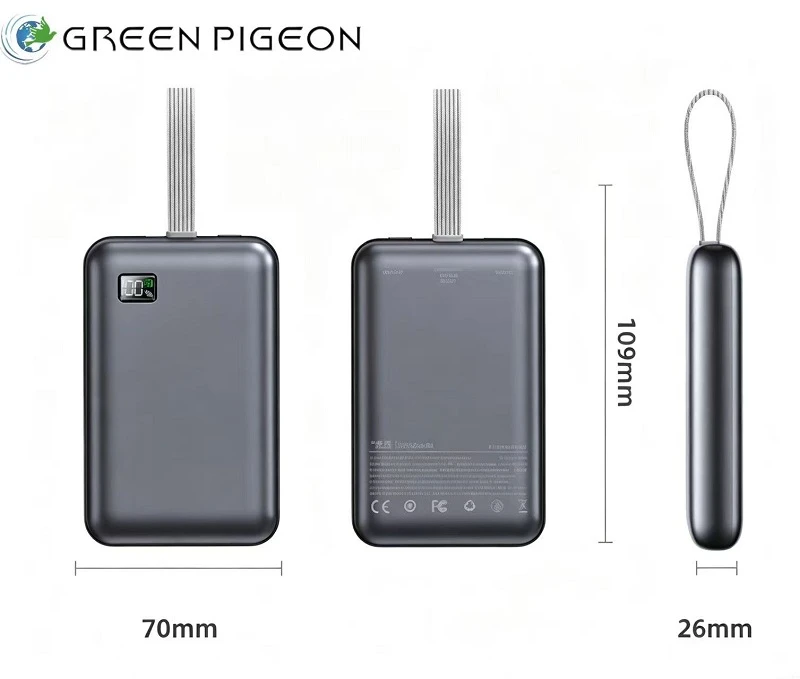

109mm * 70mm * 26mm |
|
Single Unit Net Weight |
Approx 175g |
|
Optional Colors |
Titanium Black, Gilded White |
|
Input Parameters |
Type-C Input: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, Max 22.5W |
|
Output Parameters |
Independent Type-C Port Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, Max 22.5W Built-in Type-C Cable Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, Max 22.5W |
|
Core Built-in Functions |
Intelligent LED Digital Power Display, Built-in Dual-Purpose Fast Charging Cable, Independent Type-C Fast Charge Channel, Active High-Frequency Temperature Control Chip |
Product Feature and Application of Aluminum Alloy Travel Power Bank
Core Product Competitive Advantages

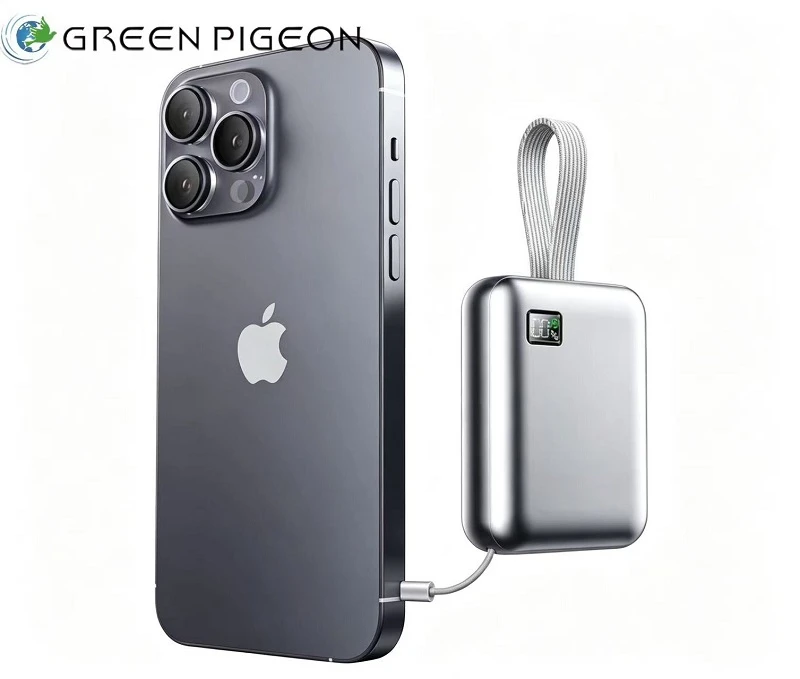

2-in-1 Built-in Braided Cable, No Extra Cord Needed For All Phones
Integrated braided dual-head cable supports both iPhone Lightning and Type-C Android phones, one cable covers all mainstream mobile devices. Wear-resistant braided craft improves bending durability, 19cm proper length for convenient handheld charging without tangled mess during outdoor trips.
True 10000mAh High-Density Polymer Cell, High Energy Conversion ≥68%
Adopts new generation high-density polymer lithium cell with stable low self-discharge performance, energy conversion rate up to 68%, less power loss during transmission. Sufficient capacity for multiple full charges of smartphones, meeting all-day outdoor and business travel power demand.
Max 22.5W Full PD Fast Charging, Universal Multi-Protocol Compatibility
Supports full range PD fast charging protocols, max 22.5W high-speed output, greatly shorten phone charging waiting time. Compatible with iPhone, Huawei, Xiaomi, Samsung and all Android brands, stable fast charging without pop-up interruption.
Active High-Frequency Temperature Control Chip, Safe Low-Temp Charging
Self-developed high-frequency temperature control chip detects temperature up to 120,000 times per hour, automatically adjust output current to avoid overheating during long-hour charging, effectively protect mobile phone battery and extend service life.

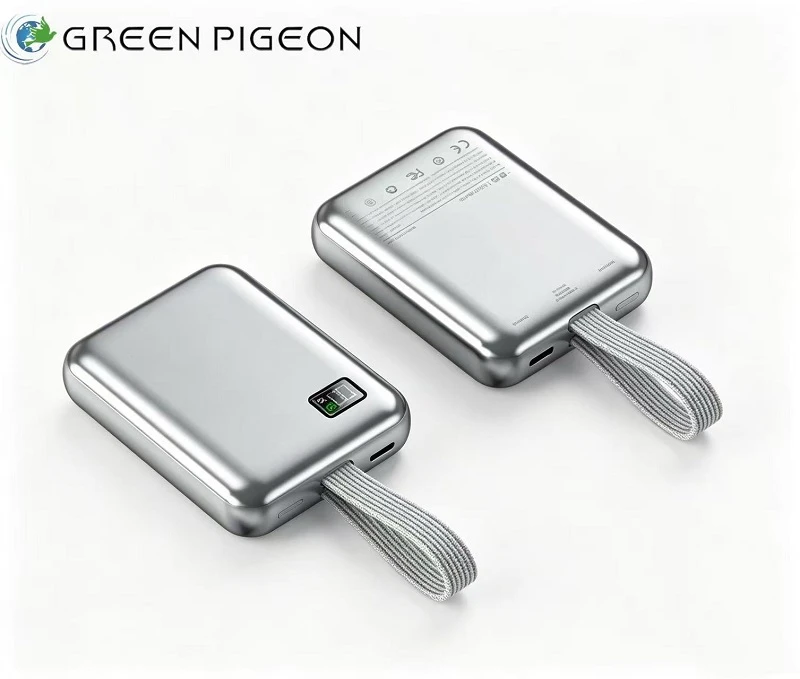

Aluminum Alloy Slim Mini Body, Ultra-Light 175g Portable Design
Whole aircraft-grade aluminum alloy shell with matte anti-fingerprint texture, exquisite metal texture and scratch-resistant performance. Compact slim size only 1097026mm, merely 175g weight, easy to slip into jeans pockets, small purses and backpack side pockets.
Clear LED Digital Power Display & Dual Fashion Color Matching
Large LED digital screen clearly shows exact remaining power percentage, users can grasp residual power at a glance without blind guessing. Two premium color versions: Titanium Black and Gilded White, matching different daily fashion styles for personal use and gift giving.
Wide Applicable Daily Travel Scenarios
This aluminum alloy built-in cable power bank fits all mobile power demand scenarios:
Daily Commute & Office: Subway, bus and office emergency phone top-up
Business & Long-Distance Travel: Flight, train and self-driving trip all-day power backup
Outdoor Leisure: Camping, hiking, picnic and sightseeing portable power supply
Small Digital Gadgets: Wireless earbuds, Bluetooth speakers, portable game consoles, electric beauty devices
Production Details of 22.5W Polymer Power Bank
High Energy Density Low Self-Discharge Polymer Cell
High purity polymer lithium cell with precise capacity grading, stable discharge curve without voltage drop under full fast charging load. Low self-discharge technology retains most capacity after weeks of standby storage, no frequent recharging required for spare use.
2-in-1 Wear-Resistant Braided Cable Craft
The built-in cable adopts tight textile braided outer layer, anti-break and anti-fray after thousands of bending tests. Dual integrated Lightning and Type-C connectors with gold-plated pins to reduce transmission resistance and stabilize fast charging signal.
Multi-Protection Intelligent Main Control Circuit Board
Mainboard integrates multi-layer safety protection circuits for overcharge, over-discharge, short circuit, overcurrent and overheating. Independent temperature sensing chip real-time monitors internal core temperature, automatically limit power output when abnormal temperature occurs to eliminate safety hazards.
Matte Aluminum Alloy CNC Injection Molding Shell
Whole shell CNC machined with aluminum alloy raw material, matte anti-fingerprint surface treatment, comfortable cool hand touch and anti-drop scratch resistance. Rounded edge design avoids sharp corner scratch to mobile phones.

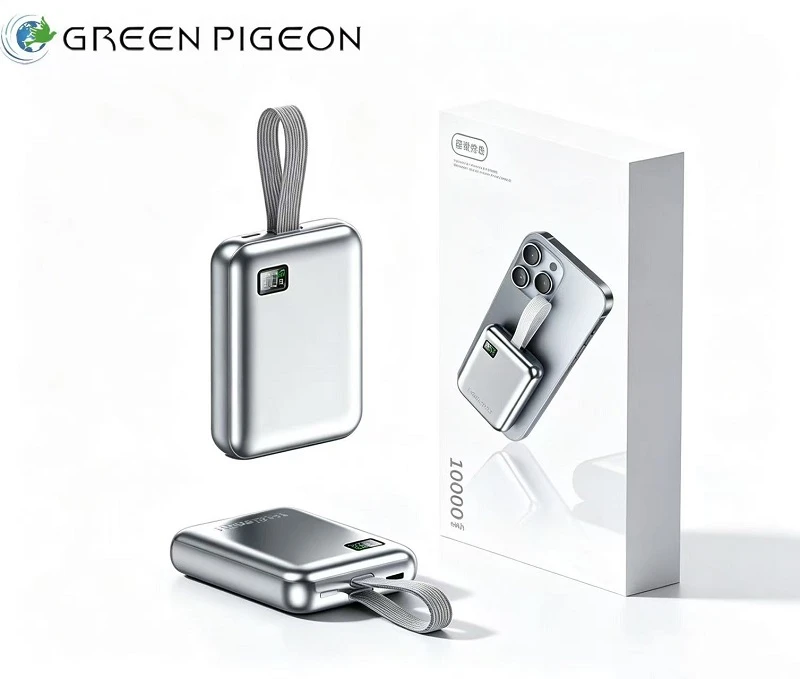

Standard Color Box Retail Packaging Production
Each power bank packed with individual full-color printed retail box with complete English parameter labels, shockproof foam inner lining to prevent shell scratch and cable extrusion during long-distance sea transportation. Every finished unit passes full charge-discharge aging test and digital display function inspection before warehouse delivery.
Product Qualification of Built-in Cable Aluminum Alloy Power Bank
- 10000mAh Polymer Cell Capacity & Long Storage Self-Discharge Aging Test Certificate
- Max 22.5W PD Fast Charging Input & Output Voltage Current Stability Test Record
- High-Frequency Temperature Control Chip Real-Time Temperature Monitoring Inspection Document
- Aluminum Alloy Shell Drop & Scratch Resistance Performance Verification File
- Multi-Protocol Mobile Phone Fast Charging Compatibility Test Report
Deliver, Shipping and Serving of Mini Aluminum Travel Power Bank
Packaging & Bulk Delivery
Single unit independent color retail box inner packing; bulk export carton wholesale support for digital accessory stores, supermarket chain and cross-border e-commerce sellers. We support EXW, FOB international trade terms, stable spot stock of Titanium Black & Gilded White 22.5W built-in cable power banks, fast OEM customized bulk order production cycle.
Comprehensive After-Sales Support for Wholesale Clients
We provide complete English product specification sheets, travel scene renderings and cross-border listing marketing copy materials for all bulk buyers. If customers receive deformed, broken cable or non-functional power banks caused by logistics extrusion, we offer free replacement or proportional compensation according to actual defective quantity. Our customer service team replies all inquiries about charging parameter matching, bulk unit pricing, export certification and custom box printing within 24 working hours.
FAQ of 22.5W Built-in Cable Aluminum Power Bank
Q1: Does the built-in cable support both iPhone and Android phones?
A: Yes, it is a 2-in-1 braided cable with Lightning and Type-C dual heads, compatible with iOS and all Type-C Android devices.
Q2: What is the maximum fast charging power of this power bank?
A: The maximum supported fast charging power reaches 22.5W via both independent Type-C port and built-in cable.
Q3: Will this power bank get hot during long-time charging?
A: Equipped with active high-frequency temperature control chip, it monitors temperature in real time and adjusts output intelligently to maintain low-temperature charging without overheating.
Q4: How many optional colors are available for this power bank model?
A: Two premium color options: Titanium Black and Gilded White for mixed batch wholesale and individual retail selection.
